Die Casting Aluminium 50000h PF0.95 150 Watt Led Street Light

  • 1
  • 2

Brand Name : Die-casting Man

Model Number : YASL-17-150

Certification : CE, RoHs, ENEC, CB

Place of Origin : CHINA

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, 30% T/T as deposit, 70% T/T balance before delivery(EXW) or against shipping documents(FOB Ningbo), L/C

Supply Ability : 30000pcs/month

Delivery Time : 7-10 days based on order QTY

Packaging Details : 1pc/bag/foam/carton, pallet optional

Power : 150W

Material : Aluminium

LED Lifetime : 50000h

IP : 66

Body Coating : Black, Gray,Sliver

Power Factor : PF≥0.95

Contact Now

 IP66 2700k 150W 5 Years Warranty Die-casting Aluminium Led Street Light   Item NO.: YASL-17-150   Production Description:  - This series is a high-performance street lighting available in two sizes.  - The Luminaire is manufactured from high pressure die-casting aluminum.   Technical Datas:
Product Code YASL-17-150 YASL-17-300
Input Wattage 150W 300W
Color Temperature 3000-6500K 3000-6500K
Luminous Flux 18000-21000lm 890000-45000lm
Input Voltage AC90-305V AC90-305V
Frequency Range 50/60Hz 50/60Hz
Power Factor PF≥0.95 PF≥0.95
Color rendering index Ra≥70 Ra≥70
Temperature of working condition -40-50℃ -40-50℃
Humidity of working condition 20%-90%RH 20%-90%RH
LED Lifetime 50000h 50000h
Protection Grade IP66 IP66
Installation Pipe Diameter Φ60mm Φ60mm
Installation Height 4-6m 8-12m
Net Weight 6.3kgs 8.9kgs
Gross Weight 7.0kgs 9.5kgs
Packing Size(mm) 530*350*130 630*400*130
Product Size(mm) 683*305*88 783*355*140

Drawing picture:

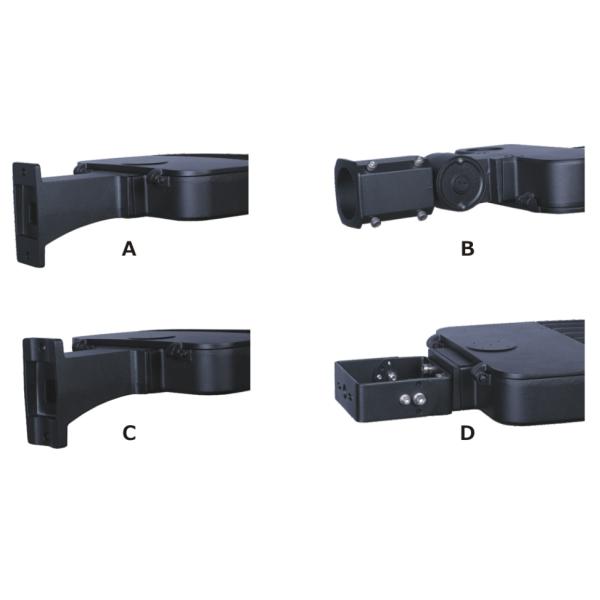

 Die Casting Aluminium 50000h PF0.95 150 Watt Led Street Light  lnstalling Ways:  Both Horizontal and Vertical available, and adjustable angle-20°to+20°   Four kinds of brackets for choosing   Die Casting Aluminium 50000h PF0.95 150 Watt Led Street Light    FAQ

Q1. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders,we prefer 30% in advance,70% against the of B/L.For long term business relations, we have more advantage terms for payment.

Q2. What is your terms of delivery?
A: We accept FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.

Q3: What is the lead time?
A:It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item was non standard, we have to consider extra 10-15days for tooling/mould made.

Q4: How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.

Q5. What is your sample policy?
A: We are glad to send wholesale led street lights samples for your inspection.Standard samples can be free, but the clients need to cover the freight cost.

Q6. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q7: How to confirm the quality with us before starting to produce?
1) We can provide wholesale led street lights samples and you can choose one or more, and then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.

Q8: How to solve the quality problems after sales?
A: Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.

Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons. If you have legally registered patent, we can pack the goods by your logo after getting your authorization letters.

Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. We have QC team comply with TQM,each step is in compliance tothe standards.
